PiPlexed - A guide to setting up a home Media Server on Raspberry Pi
Raspberry Pi, plex
This is a brief step-by-step guide to setting up a Plex & NAS enabled Pi. It assumes you kinda know what youre doing when it comes to flashing things, taking about networks and files, and using docker/containers on a high level.
Step 1 - Get all you need
You'll need the following
- The Raspberry Pi OS with no Desktop.
- A copy of Etcher to flash your SD card.
- A copy of these files to add SSH, Network from boot, no need for anything other than power.
Step 2 - Flash your SD card & prep files.
Using Etcher flash your SD card with the Raspberry Pi OS. Once this is done you can place the files you fetched from Github into the root dir. Remember to update the WiFi Passowrd and name in the
wpa_supplicant.conf. You should be able to boot the Pi now.
Step 3 - Connect and start Open Media Vault install
Connect using SSH - Windows has a built in tool now, no need to get PuTTY unless you want to for other things. You can find the Pi IP using
arp -a (it will be the new IP on the list). Installing the OMV is easy, use the following command:
wget -O - https://raw.githubusercontent.com/OpenMediaVault-Plugin-Developers/installScript/master/install | sudo bash
This will download and install all the bits required - it takes time, not is a good point for a coffee break.

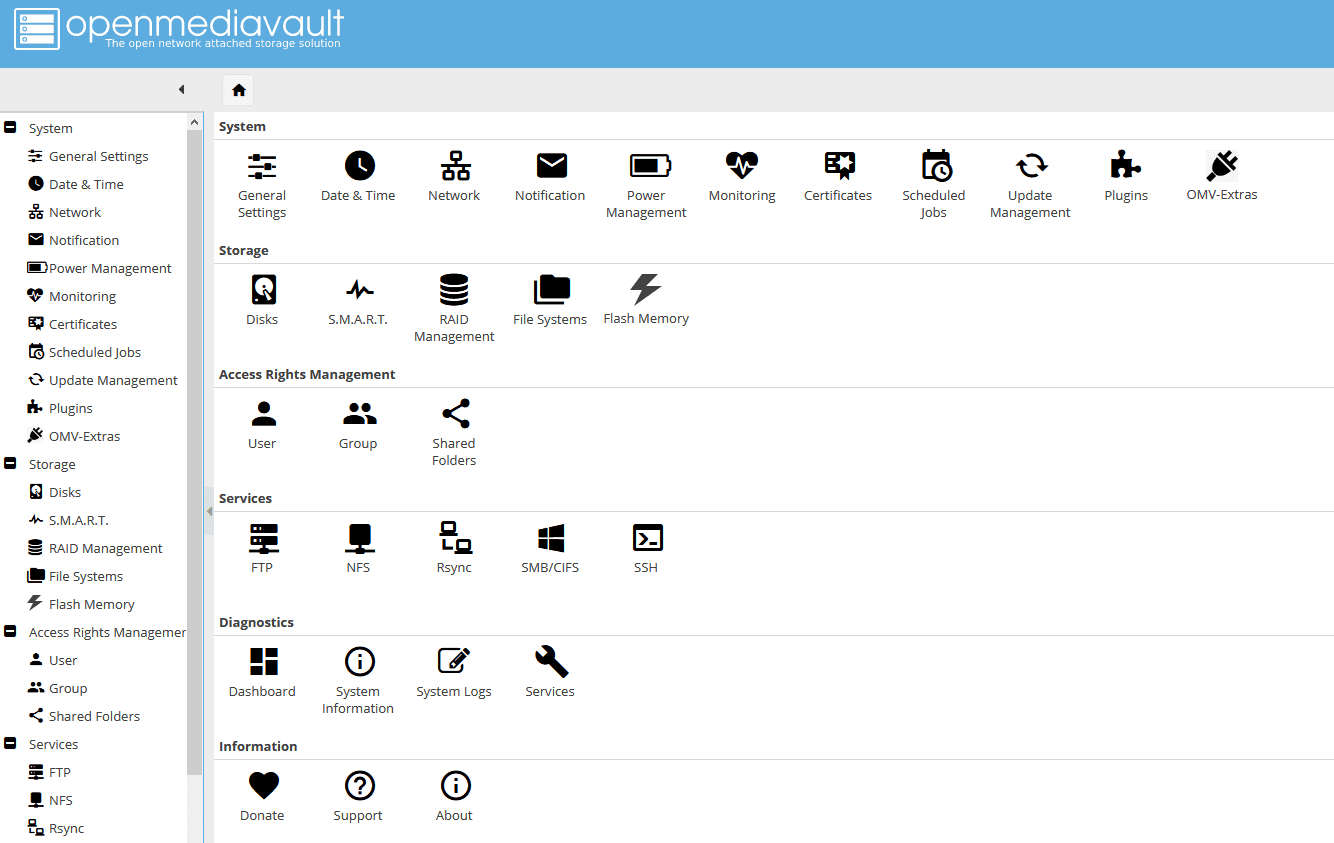

Step 4 - Access GUI and set up drives
Head over to your PIs web portal (at its IP) and log in, The default username is
admin, and the default password is
Step 5 - Start up Docker and Portainer.
Open Media Vault has set up for Docker and Portainer naitivly, so theres no real trouble getting started. Once you've done this you can also start making a 'docker-compose.yml' for your apps, for example Plex, PiHole, Netdata and Heimdall are shown below:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
# =============================== # RASPBERRY PI DEFAULT SERVICES # =============================== version: '2.4' services: # Plex for self hosting video & content. # Note: plex wont work if its not on the host network # exposed at <host>:32400/web/index.html Plex: image: linuxserver/plex:latest restart: unless-stopped network_mode: host volumes: # Custom mount paths - '/export/LittleRedBox/data/plex/config:/config' - '/export/LittleRedBox/data:/data' - '/export/LittleRedBox/data/plex/transcode:/transcode' # Netdata for monitoring the host Netdata: image: netdata/netdata:latest-armhf restart: unless-stopped ports: - 19999:19999 # Pihole for setting the PiHole: image: pihole/pihole:latest restart: unless-stopped ports: - 20053:53/tcp - 20053:53/udp - 20067:67/udp - 20080:80/tcp - 20443:443/tcp environment: WEBPASSWORD: 'newpass' Heimdall: image: linuxserver/heimdall:latest restart: unless-stopped volumes: # Still need to set up database - '/heimdall/config:/config' ports: - 21080:80 - 21443:443
